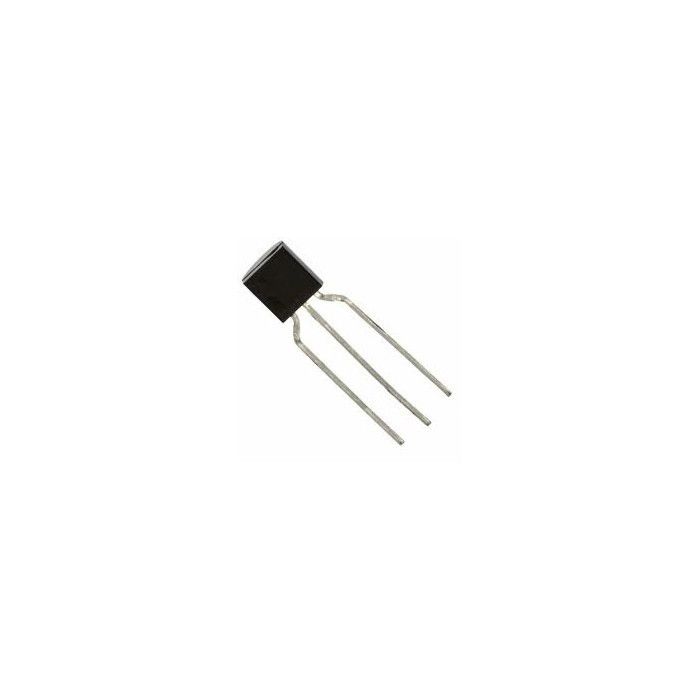

Analoge Temperatuur Sensor IC, Voltage, ± 3°C, -40 °C, +125 °C, TO-92, 3 Pins TMP36GT9Z
The TMP36 is a low voltage, precision centigrade temperature sensors. It provides a voltage output that is linearly proportional to the Celsius (centigrade) temperature. The TMP36 does not require any external calibration to provide typical accuracies of ±1°C at +25°C and ±2°C over the -40°C to +125°C temperature range. The low output impedance of the device and its linear output and precise calibration simplify interfacing to temperature control circuitry and ADCs.
✅ Op voorraad
- Artikelnummer
- A00847
€ 3,95
Omschrijving / Analoge Temperatuur Sensor IC, Voltage, ± 3°C, -40 °C, +125 °C, TO-92, 3 Pins TMP36GT9Z
The TMP36 is a low voltage, precision centigrade temperature sensors. It provides a voltage output that is linearly proportional to the Celsius (centigrade) temperature. The TMP36 does not require any external calibration to provide typical accuracies of ±1°C at +25°C and ±2°C over the -40°C to +125°C temperature range. The low output impedance of the device and its linear output and precise calibration simplify interfacing to temperature control circuitry and ADCs.
- Calibrated directly in °C
- ±2°C accuracy over temperature (typical)
- ±0.5°C linearity (typical)
- Stable with large capacitive loads
- Less than 50 µA quiescent current
- Shutdown current 0.5 uA max
- Low self-heating
Applications
Sensing & Instrumentation, Consumer Electronics, Automation & Process Control, Automotive
Meer informatie
| Artikelnummer | A00847 |
|---|---|
| Fabrikantcode | TMP36GT9Z |
| Garantie | 2 Jaar |
| Korte Beschrijving | The TMP36 is a low voltage, precision centigrade temperature sensors. It provides a voltage output that is linearly proportional to the Celsius (centigrade) temperature. The TMP36 does not require any external calibration to provide typical accuracies of ±1°C at +25°C and ±2°C over the -40°C to +125°C temperature range. The low output impedance of the device and its linear output and precise calibration simplify interfacing to temperature control circuitry and ADCs. |
