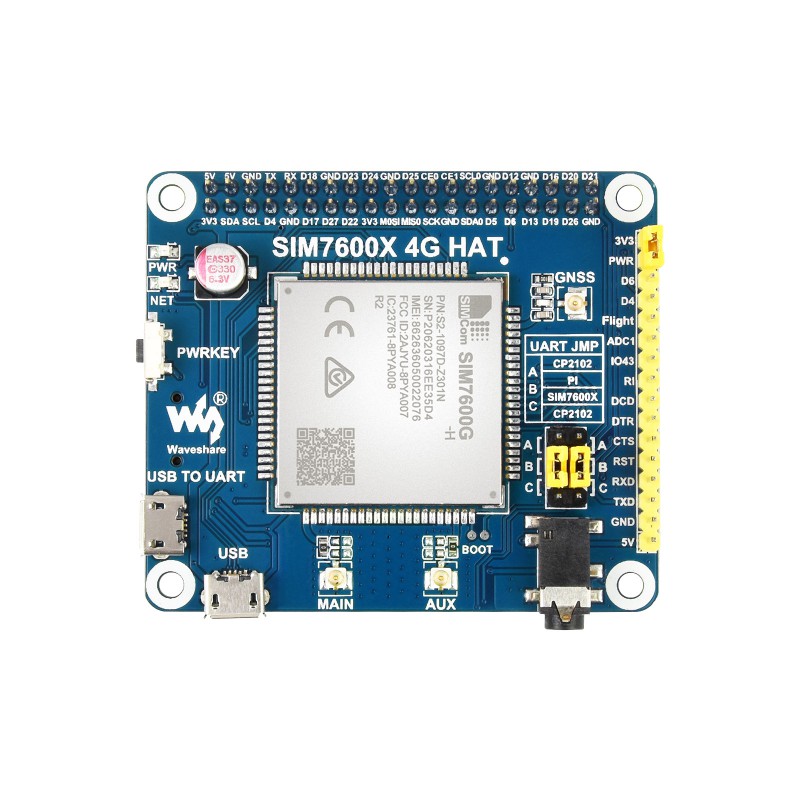

SIM7600G-H 4G HAT voor Raspberry Pi

SIM7600G-H 4G HAT voor Raspberry Pi
<p style="color: red;"><span style="color: red;">❌</span>Kan nageleverd worden</p>

Kan nageleverd worden

Artikelnummer
17372
€ 79,95

Omschrijving / SIM7600G-H 4G HAT voor Raspberry Pi

SIM7600G-H 4G HAT voor Raspberry Pi

Dit is een uitbreidingsmodule (HAT) voor de Raspberry Pi die verschillende generaties van telecommunicatie ondersteunt. Deze module maakt bellen, SMS'en en datatransfer mogelijk. Het is ideaal voor situaties waarin snelle communicatie met andere apparaten vereist is. Bovendien ondersteunt de module ook satellietnavigatie (GNSS). Hoewel de HAT speciaal is ontworpen voor de Raspberry Pi, werkt hij ook met andere microcontrollers, zoals een Arduino of ESP, via de externe pinheaders.

Meer informatie

Artikelnummer 17372
Merk Waveshare
Fabrikantcode 17372
Garantie 2 Jaar
Features Overig
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
  • Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning
  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
  • Onboard CP2102 USB to UART converter, for serial debugging
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • SIM card slot, supports 1.8V/3V SIM card
  • TF card slot for storing data like files, messages, etc.
  • Onboard audio jack and audio decoder for making telephone call
  • 2x LED indicators, easy to monitor the operating status
  • Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
  • Baudrate: 300bps ~ 4Mbps (default: 115200bps)
  • Autobauding baudrate: 9600bps ~ 115200bps
  • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Geschikt voor Raspberry Pi 3 Model B, Raspberry Pi 3 Model B+, Raspberry Pi 4 Model B
Handleidingen

https://www.waveshare.com/sim7600g-h-4g-hat.htm

https://www.waveshare.com/wiki/SIM7600G-H_4G_HAT
