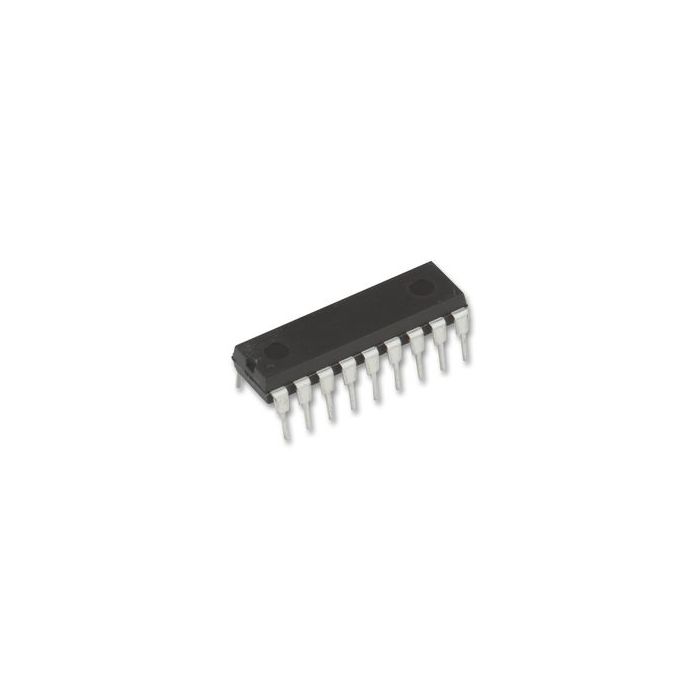

Peripheral Source Driver Array, 8 Outputs, 5 V to 50 V supply, 50 V/500 mA out, DIP-18

The MIC2981/82YN is a high-voltage high-current Source Driver Array ideal for switching high-power loads from logic-level TTL, CMOS or PMOS control signals. This driver can manage multiple loads of up to 50V and 500mA. Micrel's driver array features inputs compatible with 5V TTL and 5 to 15V CMOS or PMOS logic outputs. Micrel's dual-marked device replaces either UDN2981 or UDN2982 devices. Transient-protected outputs Integral clamp diodes Applications Automation & Process Control, Motor Drive & Control, LED Lighting

✅ Op voorraad

Artikelnummer
A00845
€ 5,95

Omschrijving / Peripheral Source Driver Array, 8 Outputs, 5 V to 50 V supply, 50 V/500 mA out, DIP-18

The MIC2981/82YN is a high-voltage high-current Source Driver Array ideal for switching high-power loads from logic-level TTL, CMOS or PMOS control signals. This driver can manage multiple loads of up to 50V and 500mA. Micrel's driver array features inputs compatible with 5V TTL and 5 to 15V CMOS or PMOS logic outputs. Micrel's dual-marked device replaces either UDN2981 or UDN2982 devices.
  • Transient-protected outputs
  • Integral clamp diodes

Applications

Automation & Process Control, Motor Drive & Control, LED Lighting

Meer informatie

Artikelnummer A00845
Fabrikantcode MIC2981/82YN
Garantie 2 Jaar
