Micro Switch w/Roller Lever - Three Terminal
❌Kan nageleverd worden
- Artikelnummer
- ADA819
Omschrijving / Micro Switch w/Roller Lever - Three Terminal
Micro-switches are often found in arcade buttons and joysticks but they're also really handy in any kind of mechatronics project or when you need a basic sensor. They are always 'tactile' (clicky feeling), and 'momentary' (the switch closes when pressed, then snaps open once released). They come in a few different varieties (mostly having to do with the contacts and how big the actuator is).

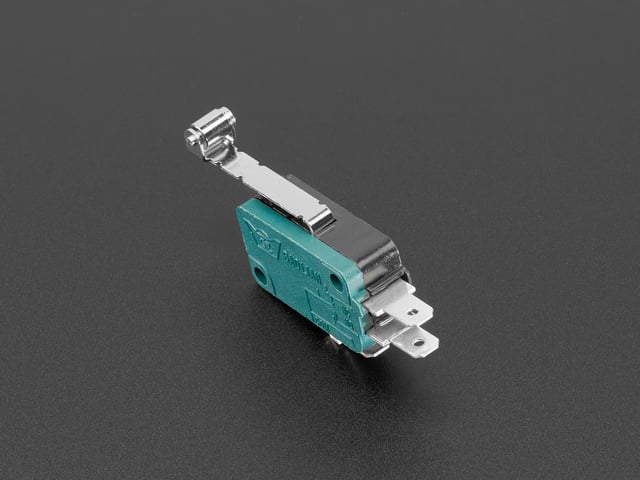

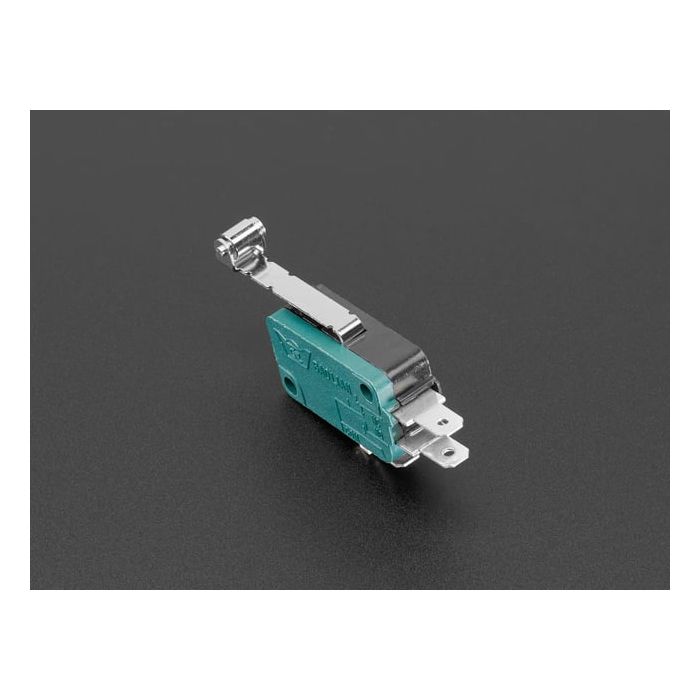

This microswitch has a flat metal lever actuator and a roller at the end. The roller makes it a little better for angled actuation. This switch comes with three terminals (common/normally-open/normally-closed). We also have kinds with a bump actuator, flat lever and long wire. This is a basic micro switch for arcade and mini robots, and we don't have any detailed specifications for it so this switch is recommended for use with 30VDC and 250mA max.
Meer informatie
| Artikelnummer | ADA819 |
|---|---|
| Garantie | 2 Jaar |
| Korte Beschrijving | Adafruit artikelnummer 819. Dit artikel bestellen wij wekelijks bij Adafruit. Wanneer het niet direct uit onze voorraad leverbaar is, bedraagt de verwachte levertijd circa 1 tot 2 weken. Indien het artikel op voorraad is, kunnen wij het uiteraard direct leveren. |
