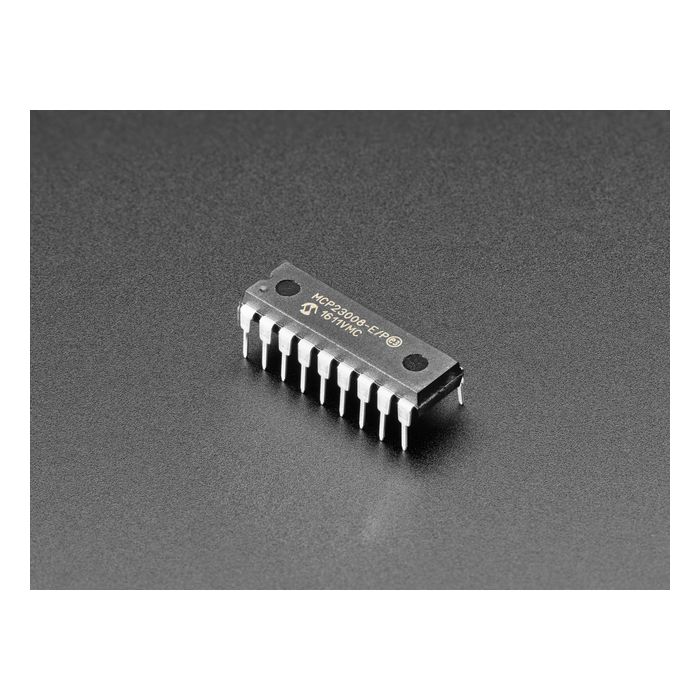

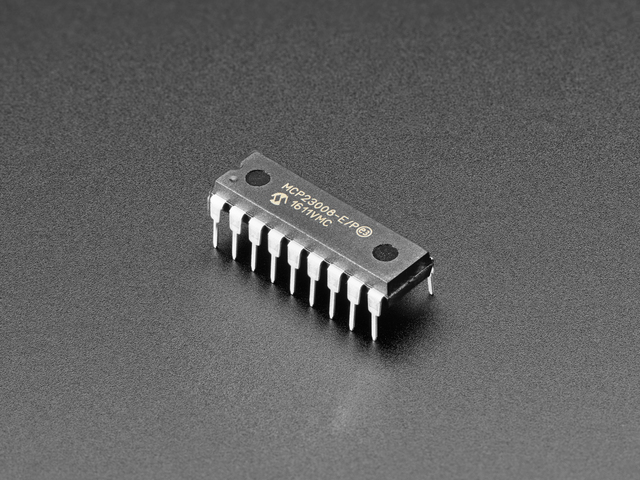

MCP23008 - i2c 8 input/output port expander
❌Kan nageleverd worden
- Artikelnummer
- ADA593
Omschrijving / MCP23008 - i2c 8 input/output port expander
Add another 8 pins to your microcontroller using an MCP23008 port expander. The MCP23008 uses two i2c pins (these can be shared with other i2c devices), and in exchange gives you 8 general purpose pins. You can set each of 8 pins to be input, output, or input with a pullup. There's even the ability to get an interrupt via an external pin when any of the inputs change so you don't have to keep polling the chip.
Use this chip from 2.7-5.5V (good for any 3.3V or 5V setup), and you can sink/source up to 20mA from any of the I/O pins so this will work for LEDs and such. Team it up with a high-power MOSFET if you need more juice. DIP package means it will plug into any breadboard or perfboard.
You can set the i2c address by tying the ADDR0-2 pins to power or ground, for up to 8 unique addresses. That means 8 chips can share a single i2c bus - that's 64 I/O pins!
We used this chip in our SPI/i2c backpack and found it to be very reliable and easy to get up and running. We even have an Arduino library with example code written which will set pin state, read and write from individual pins, and set the pullups.
Meer informatie
| Artikelnummer | ADA593 |
|---|---|
| Garantie | 2 Jaar |
| Korte Beschrijving | Adafruit artikelnummer 593. Dit artikel bestellen wij wekelijks bij Adafruit. Wanneer het niet direct uit onze voorraad leverbaar is, bedraagt de verwachte levertijd circa 1 tot 2 weken. Indien het artikel op voorraad is, kunnen wij het uiteraard direct leveren. |
