Double-Sided Single Color 12V LED Strip - Cool White 6000K - 1m
❌Kan nageleverd worden
- Artikelnummer
- ADA5864
Omschrijving / Double-Sided Single Color 12V LED Strip - Cool White 6000K - 1m

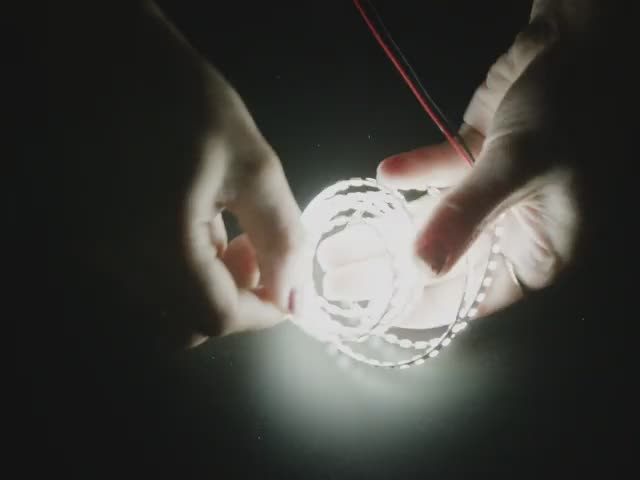

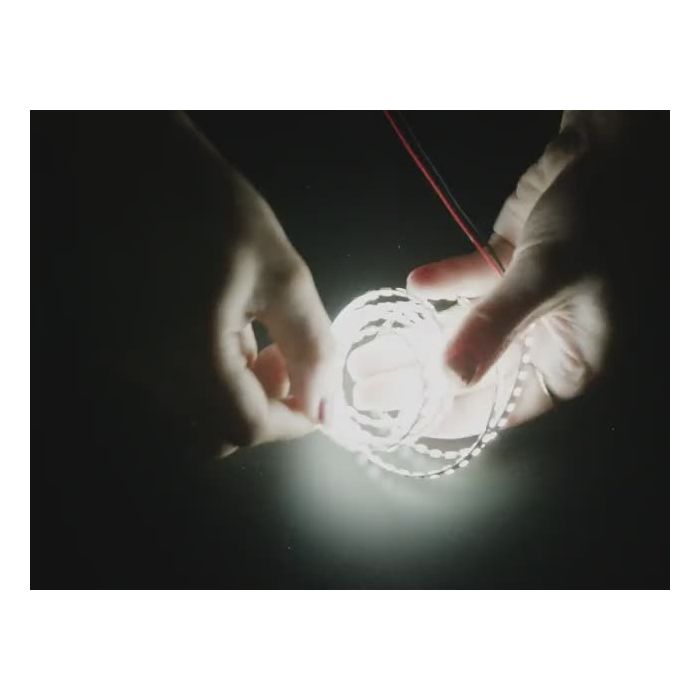

They're bright, they're white, they light up the night - look at them too close, and you may get spots in your sight... This is a Single Color, Double-Sided LED strip with 336 bright 2.6mm x 3.2mm cool white LEDs adorning both surfaces of a 6mm wide, 1 meter long LED strip.
We particularly like these strips because they are both incredibly bright and provide near-360-degree illumination, with a thin strip so it can easily be integrated into any design.
This variant of the strip has ~6000K cool white LEDs, so it's good for clean, modern lighting effects.
Each order gets a 1-meter-long strip with 2 power wires in red & black. Provide 9V (bright) to 12V (very bright!), and the strip starts to glow. The whole strip draws about 950 milliAmps maximum at 12V, 275mA at 9V. You can cut this strip down if you need to, and even re-solder to it - there are cuttable sections every 17.5mm with solder nubs.
Note these are not 'NeoPixel' LED strips; you cannot turn on or off individual LEDs. This guide on analog RGB LED strip control will show you how it works - you'll want a microcontroller with a PWM output and N-MOSFETs or a ULN2803 to control the power to the entire LED element.

Meer informatie
| Artikelnummer | ADA5864 |
|---|---|
| Garantie | 2 Jaar |
| Korte Beschrijving | Adafruit artikelnummer 5864. Dit artikel bestellen wij wekelijks bij Adafruit. Wanneer het niet direct uit onze voorraad leverbaar is, bedraagt de verwachte levertijd circa 1 tot 2 weken. Indien het artikel op voorraad is, kunnen wij het uiteraard direct leveren. |
