Raspberry Pi 5 FPC Camera Cable - 22-pin 0.5mm to 15-pin 1mm
❌Kan nageleverd worden
- Artikelnummer
- ADA5820
Omschrijving / Raspberry Pi 5 FPC Camera Cable - 22-pin 0.5mm to 15-pin 1mm

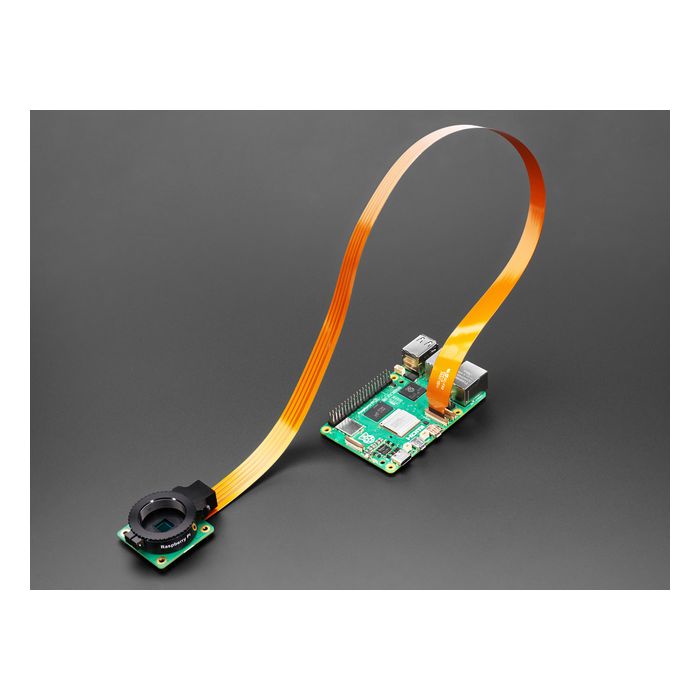

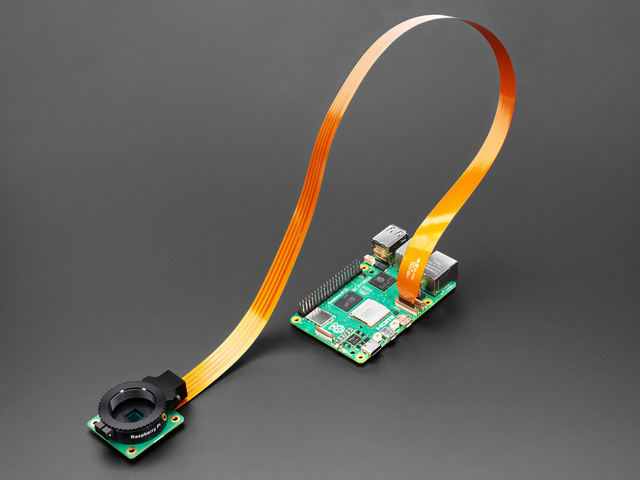

This 500mm long camera cable is specifically designed to work with the Raspberry Pi 5 series. Just plug it into your Pi 5's camera port and then the other end into one of the official Pi Cameras for photo and video joy.
Raspberry Pi 5 provides two four-lane MIPI connectors, each of which can support either a camera or a display. These connectors use the same 22-way, 0.5mm-pitch “mini” FPC format as the Compute Module
Development Kit, and require adapter cables to connect to the 15-way, 1mm-pitch “standard” format connectors on Raspberry Pi's current camera and display products.
We offer mini-to-standard adapter cables for cameras and displays (note that a camera cable should not be used with a display, and vice versa) in 200mm, 300mm, and 500mm lengths.
Please note: Neither the Raspberry Pi 5 nor the Raspberry Pi camera is included!
Meer informatie
| Artikelnummer | ADA5820 |
|---|---|
| Garantie | 2 Jaar |
| Korte Beschrijving | Adafruit artikelnummer 5820. Dit artikel bestellen wij wekelijks bij Adafruit. Wanneer het niet direct uit onze voorraad leverbaar is, bedraagt de verwachte levertijd circa 1 tot 2 weken. Indien het artikel op voorraad is, kunnen wij het uiteraard direct leveren. |
