STEMMA QT / Qwiic JST SH 4-Pin Cable - 300mm long
❌Kan nageleverd worden
- Artikelnummer
- ADA5384
Omschrijving / STEMMA QT / Qwiic JST SH 4-Pin Cable - 300mm long

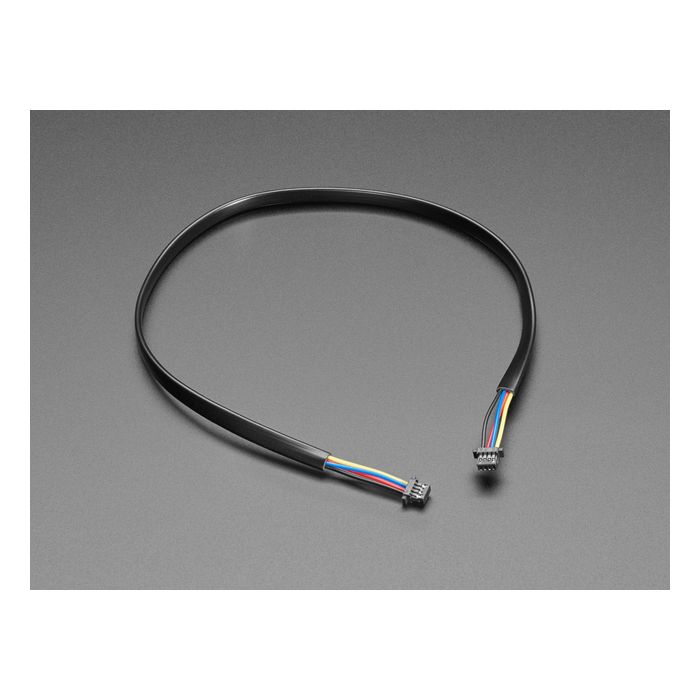

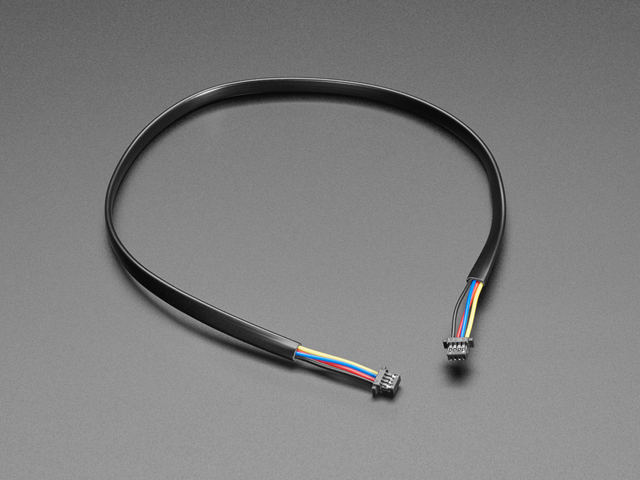

This 4-wire cable is a little over 300mm / 11.8" long and fitted with JST-SH female 4-pin connectors on both ends. Compared with the chunkier JST-PH these are 1mm pitch instead of 2mm, but still have a nice latching feel, while being easy to insert and remove.
This cable can be used with Qwiic boards, to easily connect sensors and drivers to boards with 0.1" socket headers or to solder-less breadboards. When used with Qwiic the colors are:
- Red - 3.3VDC Power
- Black - Ground
- Blue - I2C SDA Data
- Yellow - I2C SCL Clock
We've interleaved the data wire with ground and power to reduce cross-talk, but note that this cable is long for an I2C connection, so you may have difficulty using it with 1MHz/800KHz or even 400KHz signals. Try lowering your I2C clock if you're getting connection or data issues.
For more information about JST SH connectors, visit the JST website
Check out all our STEMMA QT offerings here including a wide range of lengths and connectors
Meer informatie
| Artikelnummer | ADA5384 |
|---|---|
| Garantie | 2 Jaar |
| Korte Beschrijving | Adafruit artikelnummer 5384. Dit artikel bestellen wij wekelijks bij Adafruit. Wanneer het niet direct uit onze voorraad leverbaar is, bedraagt de verwachte levertijd circa 1 tot 2 weken. Indien het artikel op voorraad is, kunnen wij het uiteraard direct leveren. |
