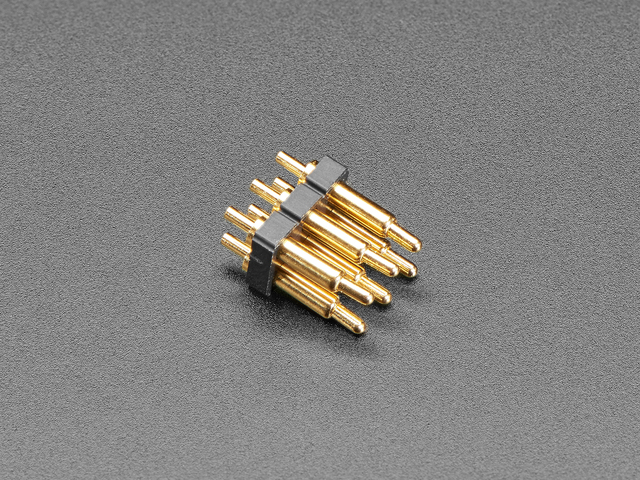

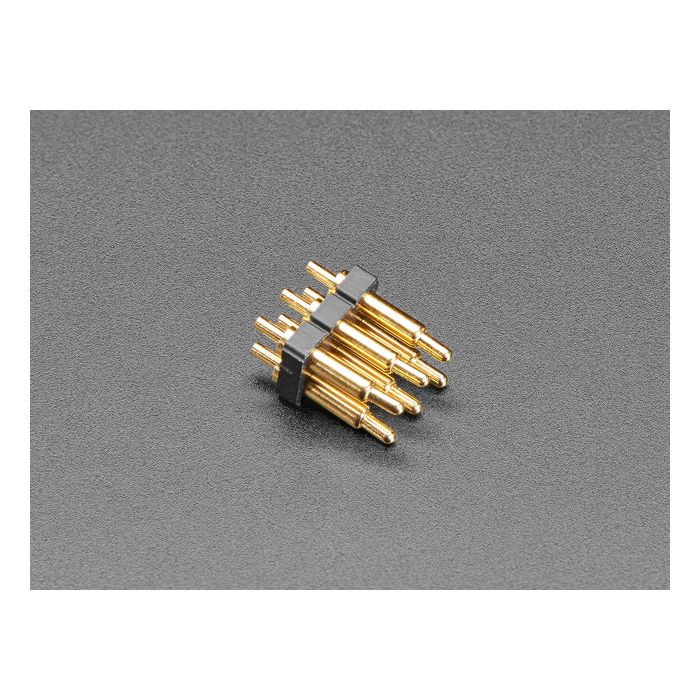

Through Hole Dual Inline Pogo Pin Header - 2x3 with 0.1" Spacing
❌Kan nageleverd worden
- Artikelnummer
- ADA5382
Omschrijving / Through Hole Dual Inline Pogo Pin Header - 2x3 with 0.1" Spacing
Pogo pins are little spring-loaded contacts, very handy for making jigs, or making momentary (but electrically solid) contacts. We use them by the dozen for making programming and testing jigs but they're handy also if say you want to JTAG program a board that you can't solder headers to.
Most pogo's come as individual pins, that must be soldered into a jig to make contact. But maybe your board has 0.1" spacing already and you don't want to make a custom PCB? In that case, you can use this Pogo Pin "Header" strip, with 6 pogos in a 2x3 configuration with 2.54mm / 0.1" spacing. There's thin stems that could be soldered into a proto or perf board. The tops are rounded and individually springy
You could snap or cut these to make smaller bits but you may lose a pogo pin in between so keep that in mind.
Comes as a single 2x3 pogo header.
Check out our tutorial on how we make pogo-pin jigs!
Meer informatie
| Artikelnummer | ADA5382 |
|---|---|
| Garantie | 2 Jaar |
| Korte Beschrijving | Adafruit artikelnummer 5382. Dit artikel bestellen wij wekelijks bij Adafruit. Wanneer het niet direct uit onze voorraad leverbaar is, bedraagt de verwachte levertijd circa 1 tot 2 weken. Indien het artikel op voorraad is, kunnen wij het uiteraard direct leveren. |
