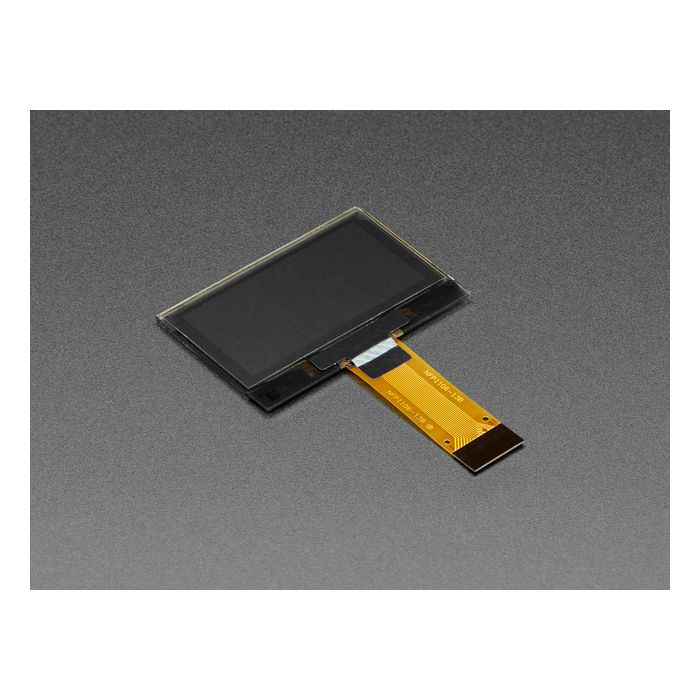

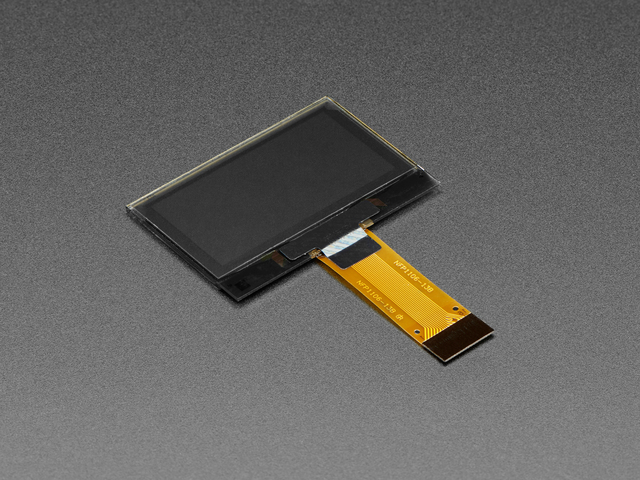

Monochrome 1.3" 128x64 SH1106G SPI OLED Monochrome Display
❌Kan nageleverd worden
- Artikelnummer
- ADA5228
Omschrijving / Monochrome 1.3" 128x64 SH1106G SPI OLED Monochrome Display
This is a screen for advanced hackers who like the look of the OLED screen we've put into the Adafruit MACROPAD RP2040.
This is just the raw display module - no PCB or supporting circuitry is included! You'll need to add other components to make it work. Check out the MACROPAD PCB files for a place to start.
We're selling this module bare for those who want to integrate it into their own project or repair a broken MACROPAD. If you just want to quickly add a monochrome 128x64 OLED to your project, we suggest our breakout board or Raspberry Pi Bonnet featuring a very-similar-OLED with SSD1306 chipsets. Both makes it easy to use SPI interfacing and also has mounting holes, level shifting, etc.
For software interfacing, you'll need an SH1106G driver, we've written both Arduino and CircuitPython drivers you can use.
For the matching connector, you'll need a 16-pin 0.5mm pitch FPC flip-lock connector.
Meer informatie
| Artikelnummer | ADA5228 |
|---|---|
| Garantie | 2 Jaar |
| Korte Beschrijving | Adafruit artikelnummer 5228. Dit artikel bestellen wij wekelijks bij Adafruit. Wanneer het niet direct uit onze voorraad leverbaar is, bedraagt de verwachte levertijd circa 1 tot 2 weken. Indien het artikel op voorraad is, kunnen wij het uiteraard direct leveren. |
