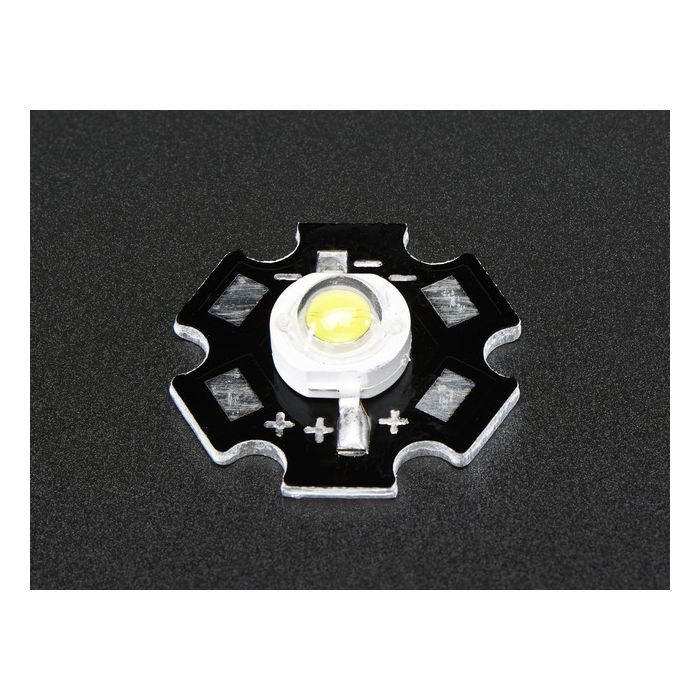

1 Watt Cool White LED - Heatsink Mounted
❌Kan nageleverd worden
- Artikelnummer
- ADA518
Omschrijving / 1 Watt Cool White LED - Heatsink Mounted
Make a 1 Watt flashlight or a headlamp with this ultra-bright LED. The LED is very bright, with 90 Lumens in a 140 degree lambertian pattern. Compared to most LEDs, you would say this is 30,000 millicandela. Either way, its incredibly bright! The output is a 'cool' 6000K pure white, not a 'warm' incandescent-looking white.

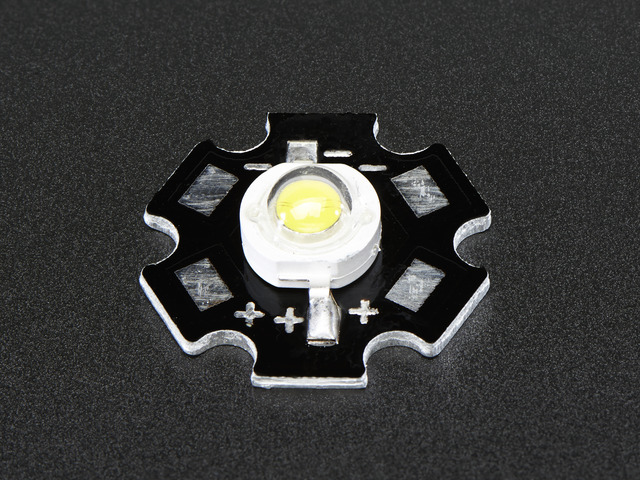

The LED is mounted onto an aluminum PCB for heatsinking, and it also makes it easy to solder in. Simply connect to the big + and - pads on the PCB (there are two of each).
The best way to drive these LEDs is constant current, @ 350 mA, but you can get away with under-driving for compactness. At about 3V, the LED draws ~200 mA, so connect two Alkaline batteries up directly with no resistor for a basic bright lamp. You can also try driving it directly with a 3.3V power supply, that will probably work OK as well (although its not ideal) - that's what we did when we made a vintage LED bike light using a 1W white LED.
Meer informatie
| Artikelnummer | ADA518 |
|---|---|
| Garantie | 2 Jaar |
| Korte Beschrijving | Adafruit artikelnummer 518. Dit artikel bestellen wij wekelijks bij Adafruit. Wanneer het niet direct uit onze voorraad leverbaar is, bedraagt de verwachte levertijd circa 1 tot 2 weken. Indien het artikel op voorraad is, kunnen wij het uiteraard direct leveren. |
