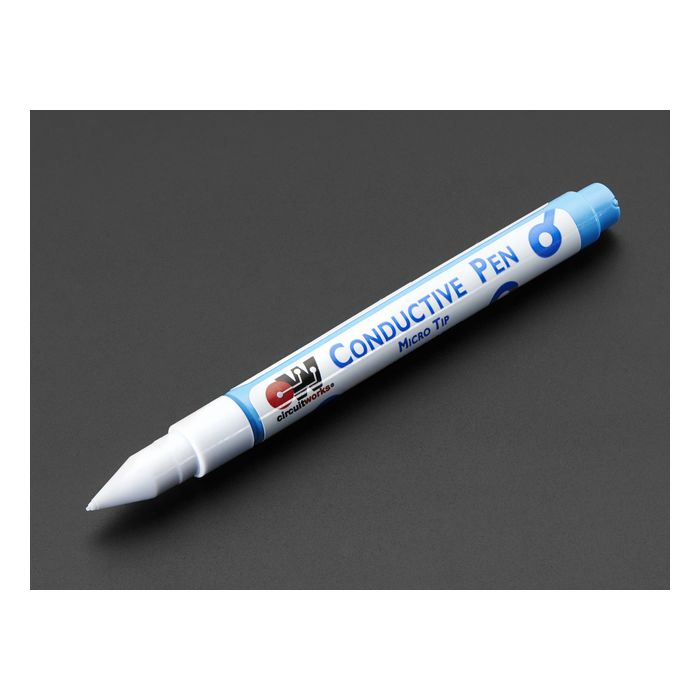

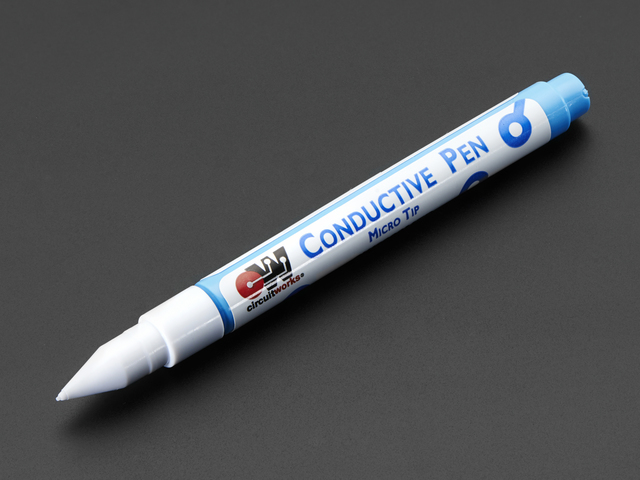

Conductive Silver Ink Pen - Micro Tip
❌Kan nageleverd worden
- Artikelnummer
- ADA515
Omschrijving / Conductive Silver Ink Pen - Micro Tip
Experiment with paper electronics with this silver conductive ink pen that will let you draw traces! We like the make of this pen, it has a nice liquid silver ink that flows easily, and it works great. In just 3 minutes from opening the packaging, we made the image above, a coin cell holder with an LED.
There are two 'tips' available - standard and micro. The microtip allows for finer control but is a little harder to use (because it doesn't deposit as much silver at once).The CW2200STP (standard tip pen) has an orifice size of 1 mm and will draw traces that will average 2.0 mm in width. The CW2200MTP (micro-tip pen) has an orifice size of 0.7 mm and will draw traces that average 1.5 mm in width. See the image above with a demonstration of the kind of traces you can draw with each of the lines (by someone with no practice :)
We strongly suggest reading the excellent tutorial document written by the makers which discusses use, shelf life, safety, soldering, and more!
Meer informatie
| Artikelnummer | ADA515 |
|---|---|
| Garantie | 2 Jaar |
| Korte Beschrijving | Adafruit artikelnummer 515. Dit artikel bestellen wij wekelijks bij Adafruit. Wanneer het niet direct uit onze voorraad leverbaar is, bedraagt de verwachte levertijd circa 1 tot 2 weken. Indien het artikel op voorraad is, kunnen wij het uiteraard direct leveren. |
