JST-SH 4-pin Cable with Micro SMT Test Hooks
❌Kan nageleverd worden
- Artikelnummer
- ADA5037
Omschrijving / JST-SH 4-pin Cable with Micro SMT Test Hooks
This cable will make it super easy to use our plug-and-play STEMMA QT boards and controllers with chips, breakouts, and other devices that are I2C compatible but don't come with a STEMMA QT socket already on 'em.
On one end you get a Qwiic / STEMMA QT connector (technically known as a JST SH 4-pin plug) into 4 individual wires with 'micro hook' ends. The hooks are much finer pitch than our alligator clip QT cable, and can easily grab on to through-holes, wires, DIP, or SOIC/SOP chips. These are not small enough for TSSOP's or TQFPs. If you need to add test points, we stock through-hole ones that fit nicely into 0.1" holes
Please note - These hooks are not the high-quality ones you see that come with expensive logic analyzers - but they do get the job done!

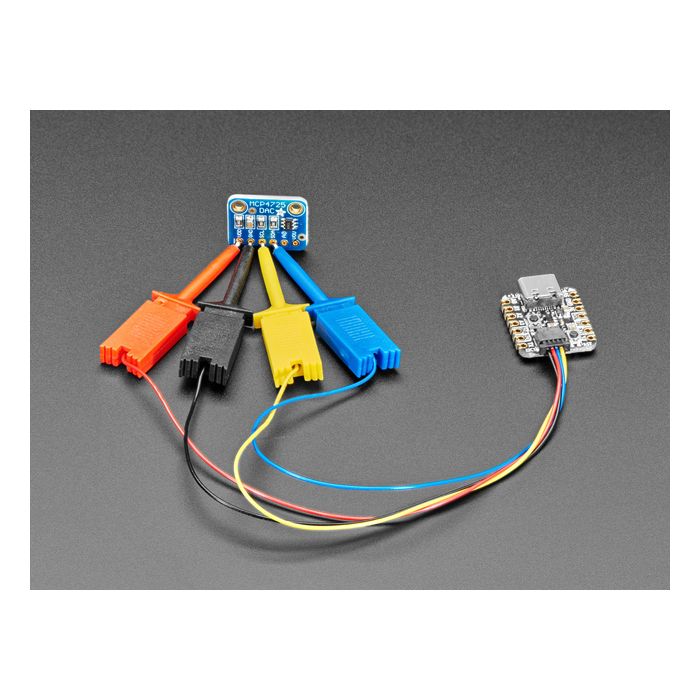

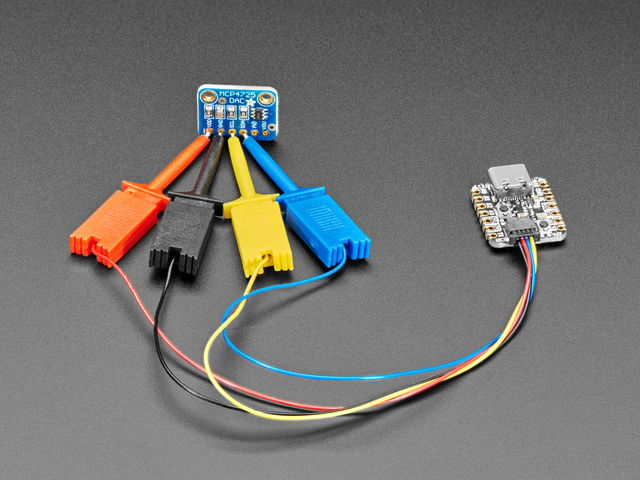

This cable has a JST SH 4-pin on one side and micro hook clips on the other.
- Black for GND
- Red for V+ - For Qwiic boards, 3.3V. For STEMMA QT, 3 to 5V.
- Blue for SDA
- Yellow for SCL
Check out all our STEMMA QT offerings here
For more information about JST SH connectors, visit the JST website
Meer informatie
| Artikelnummer | ADA5037 |
|---|---|
| Garantie | 2 Jaar |
| Korte Beschrijving | Adafruit artikelnummer 5037. Dit artikel bestellen wij wekelijks bij Adafruit. Wanneer het niet direct uit onze voorraad leverbaar is, bedraagt de verwachte levertijd circa 1 tot 2 weken. Indien het artikel op voorraad is, kunnen wij het uiteraard direct leveren. |
