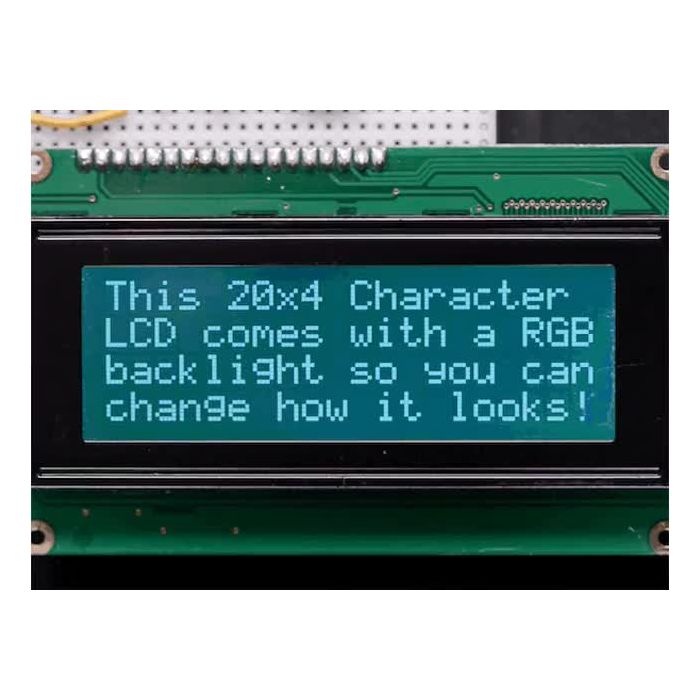

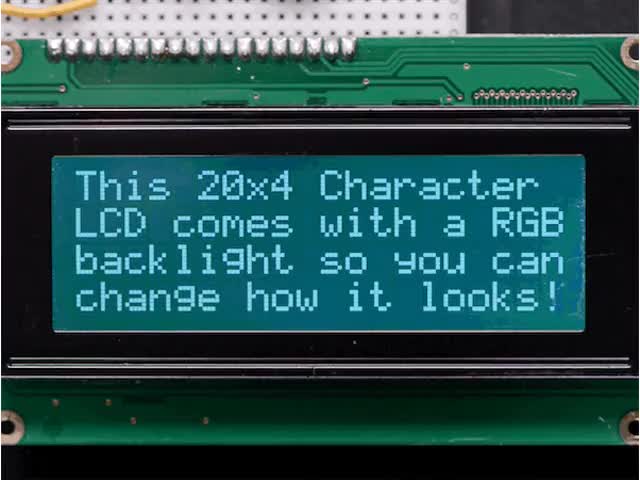

RGB backlight negative LCD 20x4 + extras

This is a fancy upgrade to standard 20x4 LCDs, instead of just having blue and white, or red and black, this LCD has full color RGB characters on a dark/black background! That means you can change the character display colors to anything you want - red, green, blue, pink, white, purple yellow, teal, salmon, chartreuse. This LCD looks strikingly good in person

One nice thing about these LCDs is that they are an elegant upgrade, but you can use them in existing LCD projects and they'll still work - just that only the red LED will be used (so it will appear red-on-black). The extra two pins (17 and 18) are for the green and blue LEDs. The LCD has resistors on board already so that you can drive it with 5V logic and the current draw will be ~40mA per LED (there are two LEDs, 20mA each). There's a single LED backlight for the entire display, the image above showing 3 colors at once is a composite!

Comes with a single 20x4 RGB backlight LCD, 10K necessary contrast potentiometer and strip of header.

For more information, check out our detailed step-by-step tutorial for both Arduino & CircuitPython
