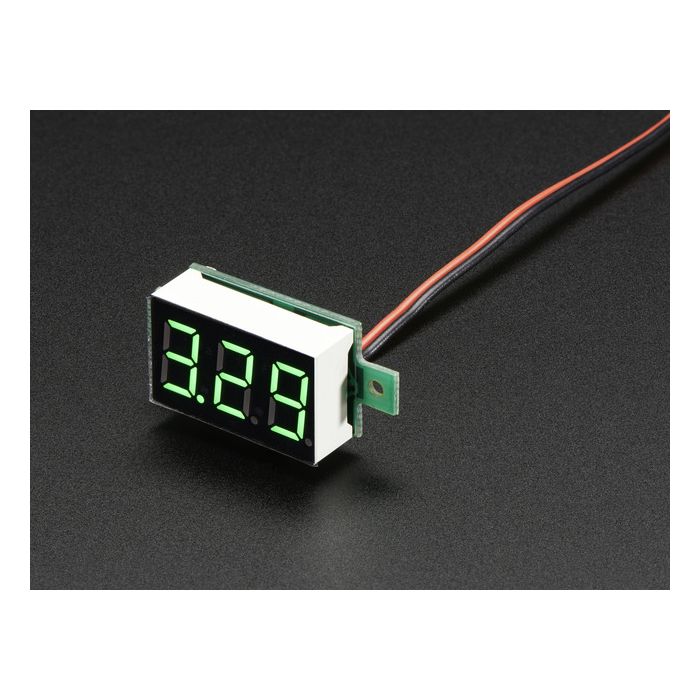

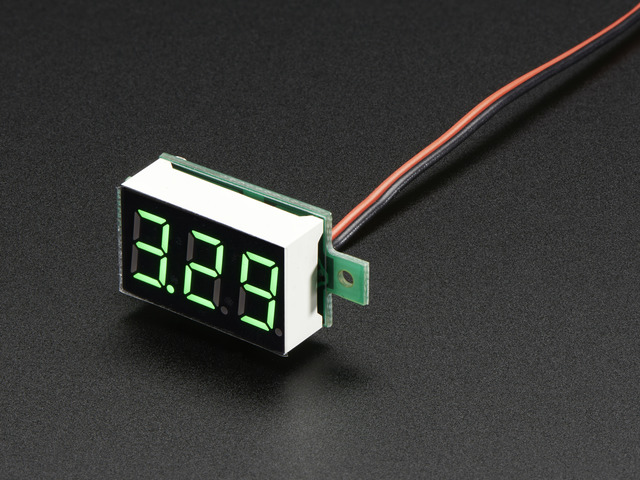

Mini 2-wire Volt Meter (2.7 - 40 VDC)
❌Kan nageleverd worden
- Artikelnummer
- ADA460
Omschrijving / Mini 2-wire Volt Meter (2.7 - 40 VDC)
Put a voltage meter anywhere with this very handy display. These are often used by RC hobbyists for keeping track of batteries but we thought it would be great on a breadboard or enclosure. This is the 2-wire version of the volt meter, two wires are used to power it and measure at the same time. We also have a 3-wire version that measure a wider range of voltages.
Simply connect the red wire to the positive supply, and black to negative ground. The display has a microcontroller that will read the voltage, compare it to a stable reference and display the voltage with 0.1V precision on a 3-digit 7-segment display. It works from 2.7V up to 40V so it will be good for nearly any electronic project! The meter draws 3-4mA to power the microcontroller and display. This particular LED display is a nice vivid green, which we found very readable. Mounting tabs make this module easy to attach to any box or plate.
Meer informatie
| Artikelnummer | ADA460 |
|---|---|
| Garantie | 2 Jaar |
| Korte Beschrijving | Adafruit artikelnummer 460. Dit artikel bestellen wij wekelijks bij Adafruit. Wanneer het niet direct uit onze voorraad leverbaar is, bedraagt de verwachte levertijd circa 1 tot 2 weken. Indien het artikel op voorraad is, kunnen wij het uiteraard direct leveren. |
