74HC595 Shift Register - 3 pack
❌Kan nageleverd worden
- Artikelnummer
- ADA450
Omschrijving / 74HC595 Shift Register - 3 pack
Add lots more outputs to a microcontroller system with chainable shift registers. These chips take a serial input (SPI) of 1 byte (8 bits) and then output those digital bits onto 8 pins. You can chain them together so putting three in a row with the serial output of one plugged into the serial input of another to make 3 x 8 = 24 digital outputs. You can chain pretty much as many as you want. This makes it easy to control a lot of outputs like LEDs from only 3 digital microcontroller pins.

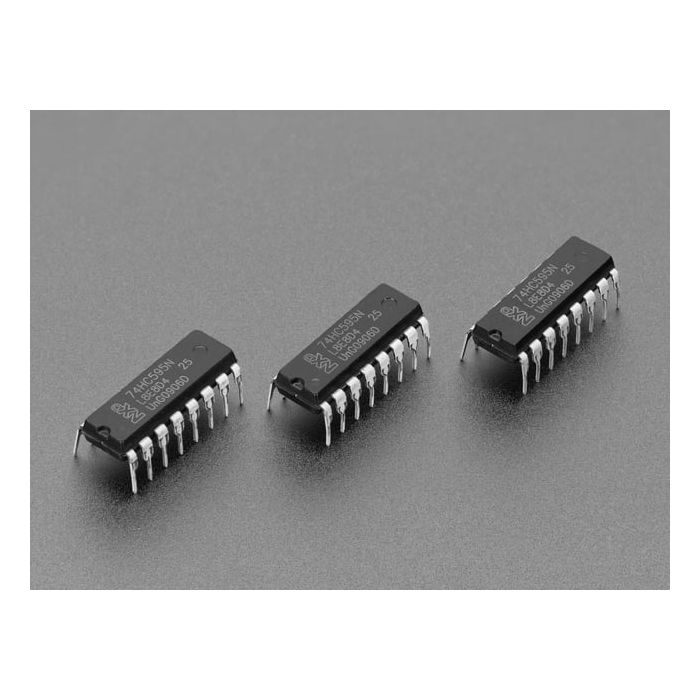

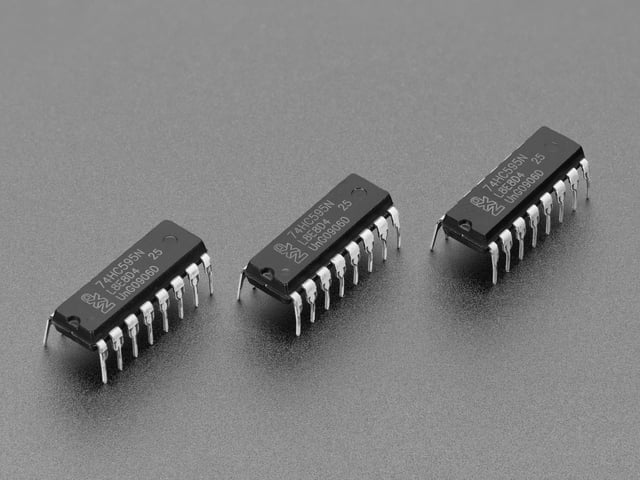

This item contains three 74HC595 chips! The chips may be NXP or TI brand, they're cross-compatible pinouts. We don't guarantee which brand you'll receive.
These chips are DIP packages so you can easily plug them into any breadboard or perfboard with 0.1" spacing. The digital outputs are good for about 20mA, which makes them ideal for LEDs or driving power transistors (say for controlling a lot of solenoids).
For an excellent tutorial on usage, check out the Arduino ShiftOut page
Meer informatie
| Artikelnummer | ADA450 |
|---|---|
| Garantie | 2 Jaar |
| Korte Beschrijving | Adafruit artikelnummer 450. Dit artikel bestellen wij wekelijks bij Adafruit. Wanneer het niet direct uit onze voorraad leverbaar is, bedraagt de verwachte levertijd circa 1 tot 2 weken. Indien het artikel op voorraad is, kunnen wij het uiteraard direct leveren. |
