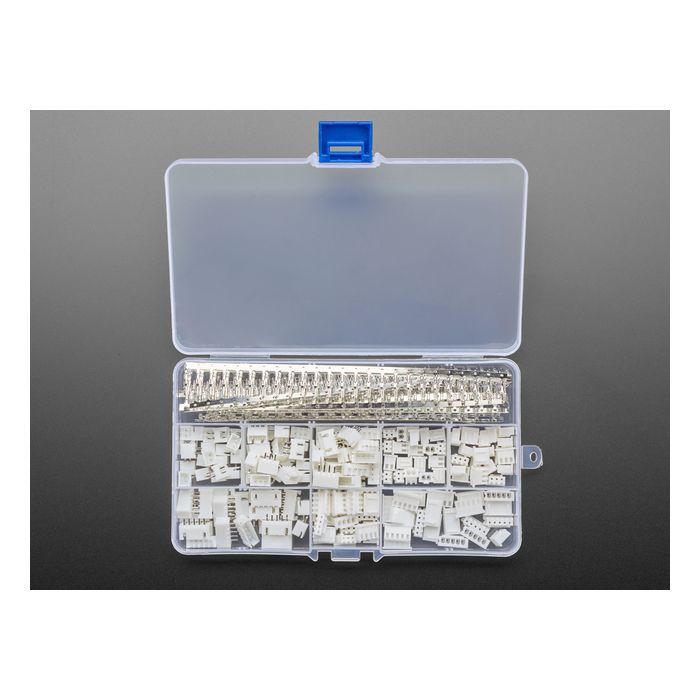

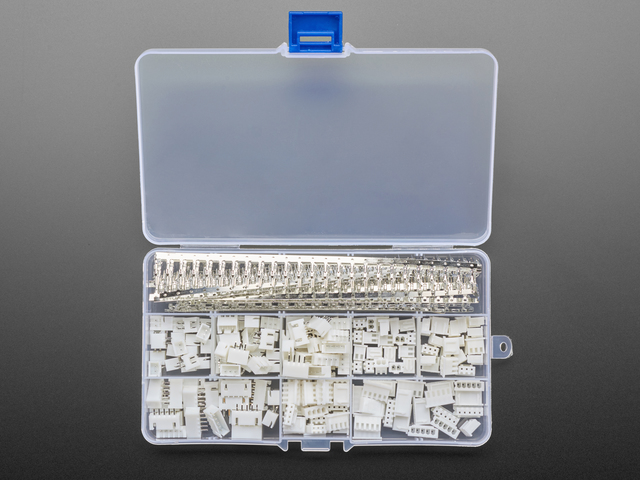

2.5mm Pitch Connector Kit - JST XH Compatible - 560 Piece Kit

Totaling 560 pieces, this 2.5mm Connector Kit with JST-XH Compatible Connectors is a must-have for your workstation. You'll have enough sockets and headers to fuel your maker tendencies for days on end!

These connectors are really common in electronics, we use the 2 pin ones for our arcade quick-connects. Since they are 2.5mm they are very close to and will fit 0.1" headers - so you can use nicely with perf-boards, breadboards, plain header, etc.

We recommend you own a set of crimping pliers as well, such as these nice ones from Engineer - they're easier to use than trying to crimp with pliers.

Since they are nylon, they don't conduct electricity or interfere with antennas/magnetometers.

Set contains the following parts in a nice reusable storage container:

• 20 x JST XH-compatible 2.5mm 2-pin connector
• 20 x JST XH-compatible 2.5mm 3-pin connector
• 20 x JST XH-compatible 2.5mm 4-pin connector
• 20 x JST XH-compatible 2.5mm 5-pin connector
• 200 x JST-XH-compatible 2.5mm female crimp pin (crimp these onto wires that will plug into the connectors above)
• 20 x JST B2B-XH-A compatible 2-pin 2.5mm TH shrouded header - solder these into a PCB or perfboard
• 20 x JST B3B-XH-A compatible 3-pin 2.5mm TH shrouded header - solder these into a PCB or perfboard
• 20 x JST B4B-XH-A compatible 4-pin 2.5mm TH shrouded header - solder these into a PCB or perfboard
• 20 x JST B5B-XH-A compatible 5-pin 2.5mm TH shrouded header - solder these into a PCB or perfboard

For more information on JST XH, plus specs and datasheet, check out the official JST website, these connectors use the same footprint!
