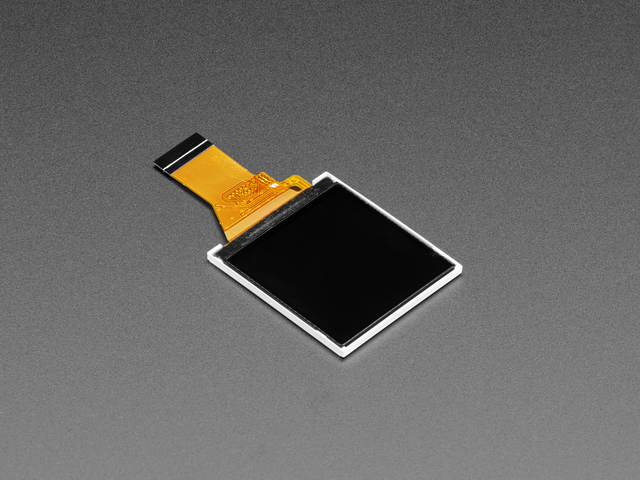

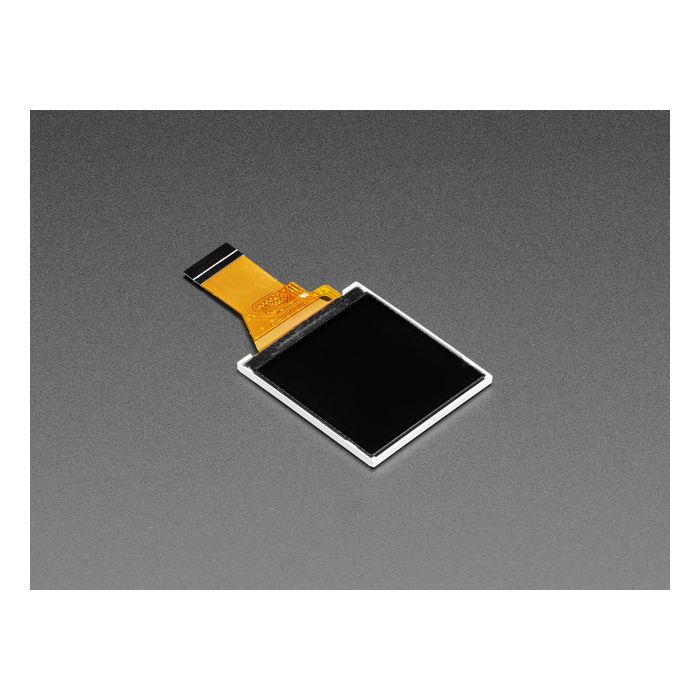

1.54" 240x240 Color IPS TFT Display

This is a screen for advanced hackers who like the look of the TFT screen we've put into the TFT Gizmo and Monster M4sk. The 1.54" display has 240x240 16-bit full color pixels and is an IPS display, so the color looks great up to 80 degrees off axis in any direction. The TFT driver (ST7789) is very similar to the popular ST7735, and our Arduino library supports it well.

This is just the display module! No PCB is included!

We're selling this module bare for those who want to integrate it into their own project. If this is your first time working with this TFT we suggest our breakout board which makes it easy to use SPI interfacing and also has mounting holes, level shifting, etc..

Of course, we wouldn't just leave you with a datasheet and a "good luck!" - we've written a full open source graphics library that can draw pixels, lines, rectangles, circles, text and bitmaps as well as example code and a wiring tutorial. The code is written for Arduino but can be easily ported to your favorite microcontroller! Since the display uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available!

Please note! This display is designed original for smart watches and similar, where there's a glass over the screen. Without something gently holding the screen down, the backlight can eventually peel away from the TFT. (It's not destructive, but it's unattractive) You can prevent this by, ideally, adding a plastic or glass cover/overlay. If using bare, try dabbing a touch of E6000 or similar craft glue on the thin side edges, or using a thin piece of tape to keep the front TFT attached to the backlight.

For the matching connector, you'll need a 22-pin 0.5mm pitch bottom contact FPC connector such as Molex 5051102291
