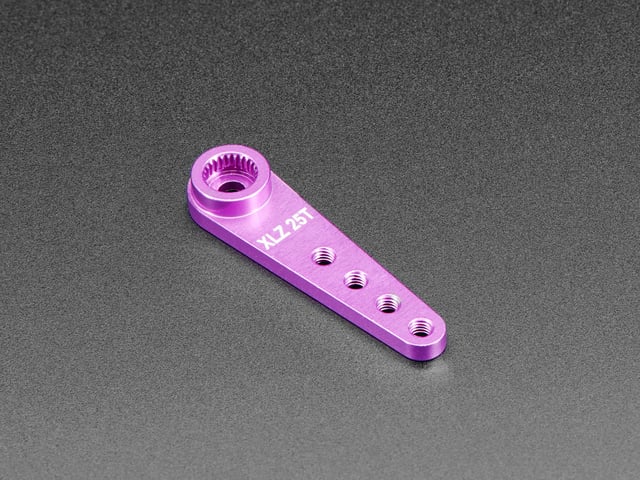

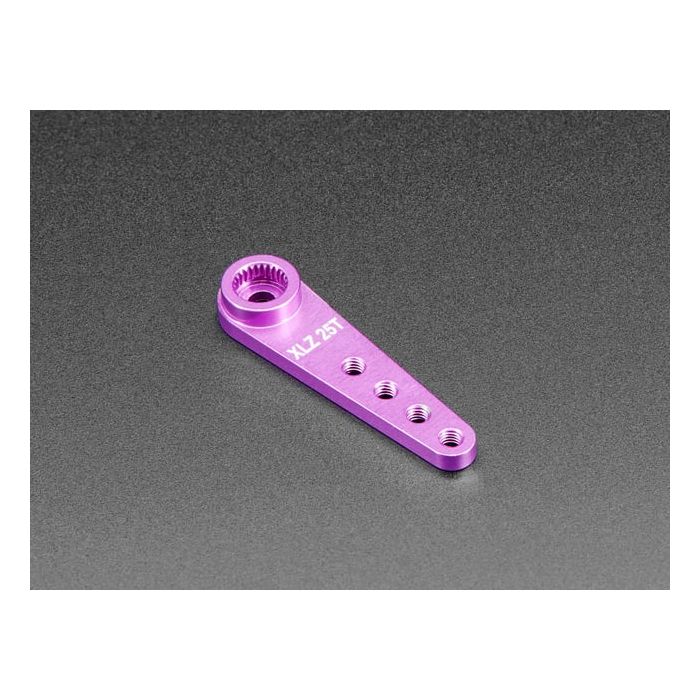

Machined Aluminum Servo Arm
❌Kan nageleverd worden
- Artikelnummer
- ADA3837
Omschrijving / Machined Aluminum Servo Arm
If you bought a servo from us you probably got a bunch of plastic add-ons that you can snap onto the rotating part of the servo. These are called 'servo horns' and the standard ones you'll get are plastic pieces. They're good but often short and not very strong plastic.
This Machined Aluminum Servo Arm lets you bring your A-Game to servo projects. It's strong anodized aluminum. Looks great, is easy to install, and will last for a long time.
The servo arm is 37mm long and the arm part is 2.5mm thick aluminum. It has four tapped 2.5mm screw holes and a 3mm screw hole on the end (M3 compatible). The holes are 15mm, 20mm, 25mm, and 30mm from the center rotational point.
The center part mates with 25-tooth servo axles. We've found it's compatible with our standard-size servo motors:
- Continuous Rotation Servo - Feetech FS5103R
- Standard Servo - TowerPro SG-5010
- Standard Size - High Torque - Metal Gear Servo
But it will not fit neither the Parallax Feedback 360 Degree High Speed Continuous Rotation Servo nor micro and sub-micro servos.
Meer informatie
| Artikelnummer | ADA3837 |
|---|---|
| Garantie | 2 Jaar |
| Korte Beschrijving | Adafruit artikelnummer 3837. Dit artikel bestellen wij wekelijks bij Adafruit. Wanneer het niet direct uit onze voorraad leverbaar is, bedraagt de verwachte levertijd circa 1 tot 2 weken. Indien het artikel op voorraad is, kunnen wij het uiteraard direct leveren. |
