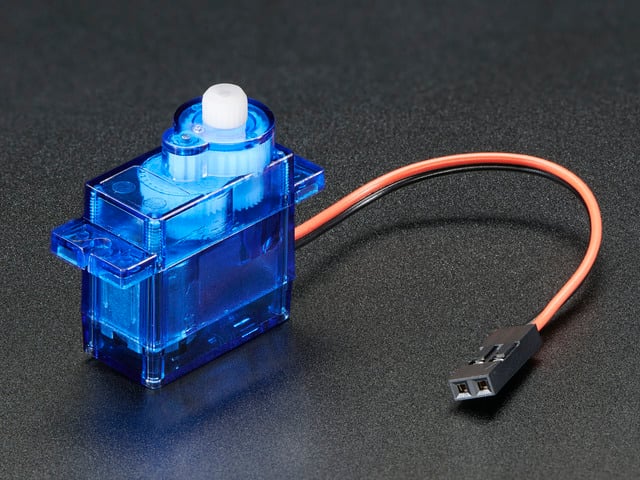

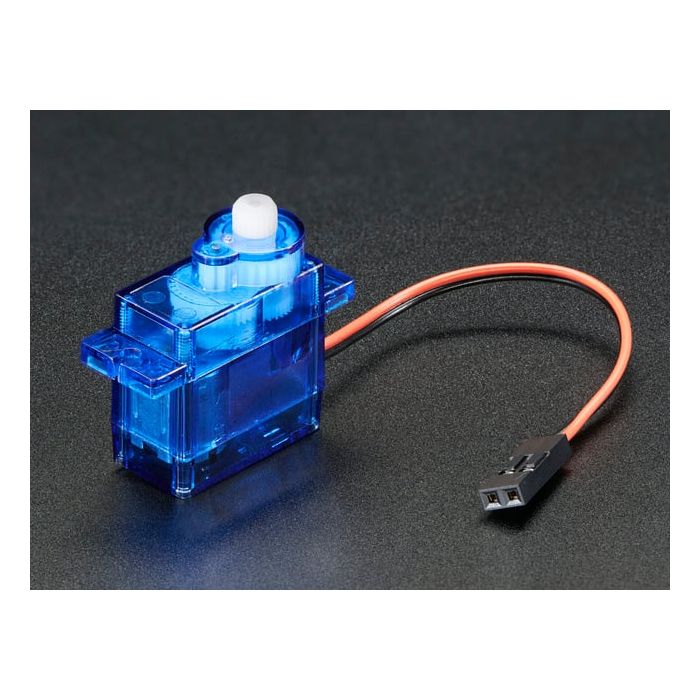

DC Motor in Micro Servo Body
❌Kan nageleverd worden
- Artikelnummer
- ADA2941
Omschrijving / DC Motor in Micro Servo Body
This tiny DC Motor in Micro Servo Body is an interesting motor - it's the same size and shape as our micro servo but it isn't a servo. It's more like a DC motor + plastic gear-train in a box. It's not a super powerful motor, it would do well as a little robot wheel. It's also a lot less expensive than a micro servo (continuous or non-continuous) because there is no control board inside. Controlling speed is done by PWM'ing the power leads, controlling direction is done by swapping the power polarity - just like any brushed DC motor.
Runs from 4-6VDC, we've powered it with a Lipoly and 3 alkaline, or 4 NiMH batteries with success. You cannot control this directly from a microcontroller pin! You must have a H-bridge such as a L293D, TB6612 or a Motor shield, Motor HAT or DC Motor + Stepper FeatherWing.
Motor comes with 2x screws and 2x nuts for mounting to a chassis. No flanges or horns included - it's intended to mate with our little wheels, there's a screw to attach once they're plugged together. Build a robot vehicle of your own with these little motors driving it!
Meer informatie
| Artikelnummer | ADA2941 |
|---|---|
| Garantie | 2 Jaar |
| Korte Beschrijving | Adafruit artikelnummer 2941. Dit artikel bestellen wij wekelijks bij Adafruit. Wanneer het niet direct uit onze voorraad leverbaar is, bedraagt de verwachte levertijd circa 1 tot 2 weken. Indien het artikel op voorraad is, kunnen wij het uiteraard direct leveren. |
