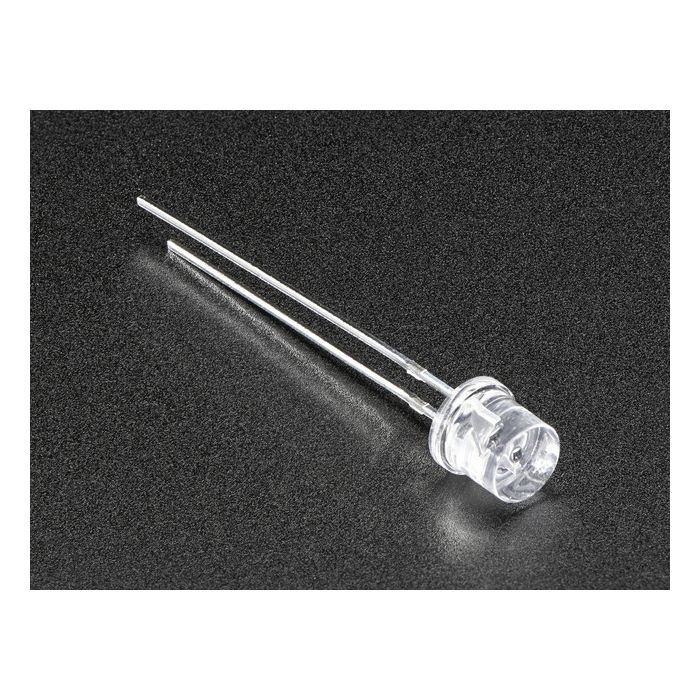

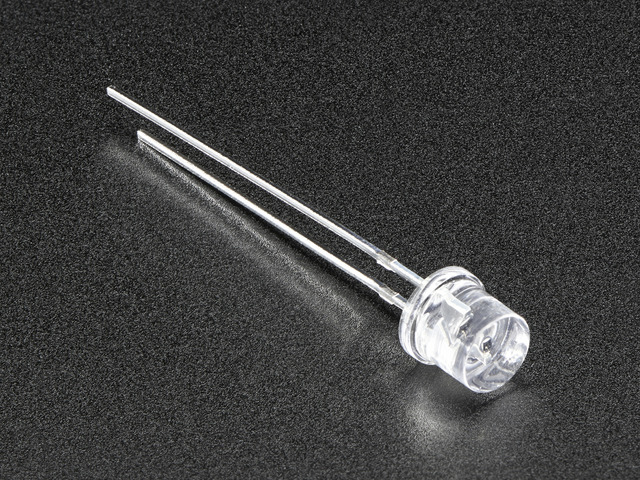

Photo Transistor Light Sensor
❌Kan nageleverd worden
- Artikelnummer
- ADA2831
Omschrijving / Photo Transistor Light Sensor
This Photo Transistor Light Sensor is a simple sensor that detects ambient light. It's kind of the opposite of an LED - when light hits the little chip inside, it induces current to flow from the long pin to the short pin. This sensor has a built-in optical filter (probably IR filter) so it'll do a fair job of simulating light levels as the human eye does.
To use, connect the pin connected to the 'thicker' part of the sensor (longer pin) to 3-15VDC or so, and the thinner-part (shorter) pin through a ~1K-10K series resistor to ground. When it's dark, there's almost no current flowing through the sensor or resistor and the analog voltage is near ground. When there's light near the sensor, the current through the resistor will increase, raising the voltage. You can adjust the series resistor to get the voltage range you need and measure the analog voltage with a microcontroller.
If you're not getting any readings, try flipping the sensor around.
These are, essentially, replacements for CdS photocells, but are RoHS compliant.
Meer informatie
| Artikelnummer | ADA2831 |
|---|---|
| Garantie | 2 Jaar |
| Korte Beschrijving | Adafruit artikelnummer 2831. Dit artikel bestellen wij wekelijks bij Adafruit. Wanneer het niet direct uit onze voorraad leverbaar is, bedraagt de verwachte levertijd circa 1 tot 2 weken. Indien het artikel op voorraad is, kunnen wij het uiteraard direct leveren. |
