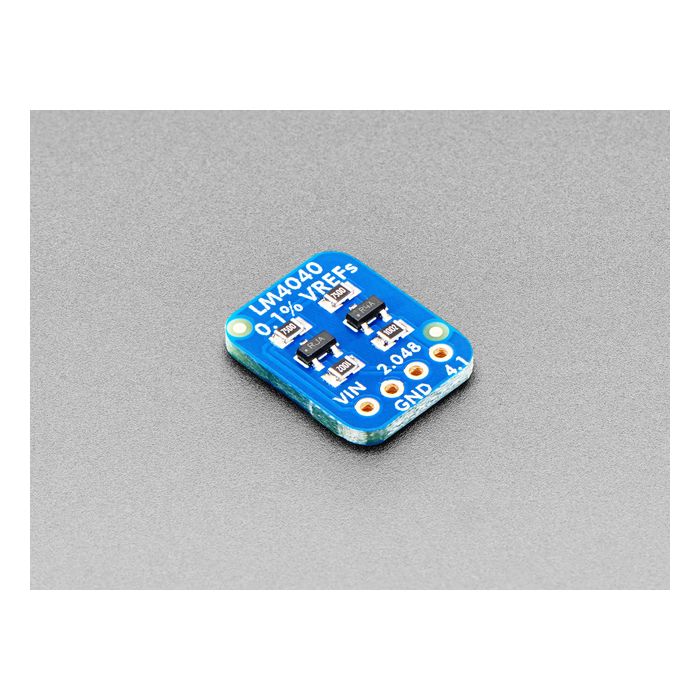

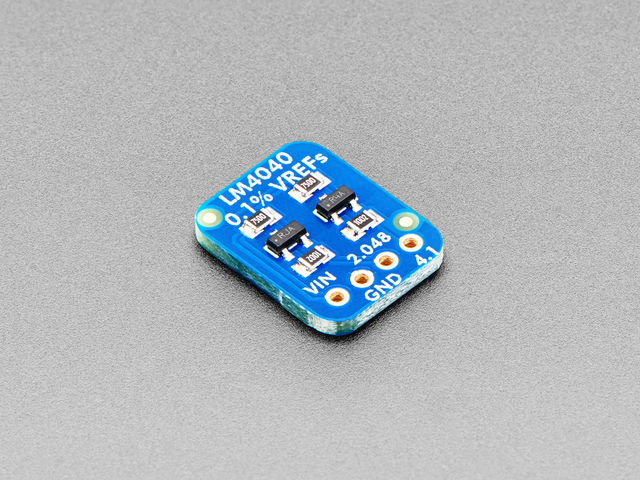

Precision LM4040 Voltage Reference Breakout - 2.048V and 4.096V
❌Kan nageleverd worden
- Artikelnummer
- ADA2200
Omschrijving / Precision LM4040 Voltage Reference Breakout - 2.048V and 4.096V
How good is your multimeter really? Or maybe your analog converter needs a good reference? Or lets say you want to test your microcontroller's conversion accuracy & precision. If only you had a dependable, high precision, rock-solid voltage reference. Now you know why we made this very cute and useful little breakout board. It has two very high precision shunt-type voltage references with 750 ohm biasing resistors. One is 2.048V (great for 3.3V reference systems) and the other is 4.096 (great for 5V). Both are 0.1% accuracy!
Using is easy, just power with about 5V-12V, or 3V if you want only the 2V reference to work. Then measure the voltage on the output. Note that these are not regulators - you can't power anything off the output. They are for measurements only. For more details, check the LM4040 Datasheet for more information.
Meer informatie
| Artikelnummer | ADA2200 |
|---|---|
| Garantie | 2 Jaar |
| Korte Beschrijving | Adafruit artikelnummer 2200. Dit artikel bestellen wij wekelijks bij Adafruit. Wanneer het niet direct uit onze voorraad leverbaar is, bedraagt de verwachte levertijd circa 1 tot 2 weken. Indien het artikel op voorraad is, kunnen wij het uiteraard direct leveren. |
