1.2" 8x8 Matrix Square Pixel - Amber
❌Kan nageleverd worden
- Artikelnummer
- ADA1818
Omschrijving / 1.2" 8x8 Matrix Square Pixel - Amber

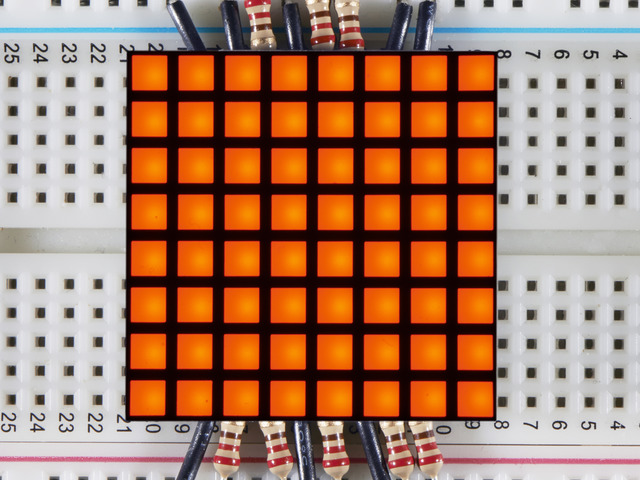

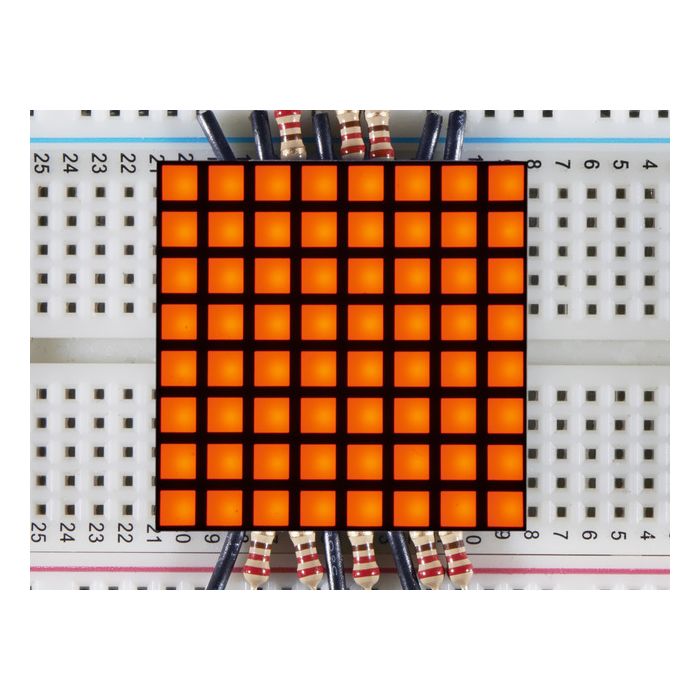

Make a scrolling sign, or a small video display with this 8x8 gridded square Amber LED matrix. Only 1.2" on a side, it is quite visible but not so large it won't plug into a breadboard! 64 Amber LEDs are contained inside the plastic body, in an 8x8 matrix. There are 16 pins on the side, 8 on each, with 0.1" spacing so you can easily plug it into a breadboard with one row on each side for wiring it up.
These LEDs have a deeper amber coloring, it's a beautiful shade but the process is different than our other 1.2" yellow-orange/amber LED matrices so be aware the colors won't match up.
Since the display is in a grid, you'll need to 1:8 multiplex control it. We suggest either using a 74HC595 and TPIC6B595 (using the 74HC' to control the 8 anodes at once and then using the TPIC' to drive one cathode at a time) or just using a single MAX7219 which will do the multiplexing work for you.
The Arduino playground has a nice set of tutorials introducing the MAX7219 and 8x8 LED matrices
Meer informatie
| Artikelnummer | ADA1818 |
|---|---|
| Garantie | 2 Jaar |
| Korte Beschrijving | Adafruit artikelnummer 1818. Dit artikel bestellen wij wekelijks bij Adafruit. Wanneer het niet direct uit onze voorraad leverbaar is, bedraagt de verwachte levertijd circa 1 tot 2 weken. Indien het artikel op voorraad is, kunnen wij het uiteraard direct leveren. |
