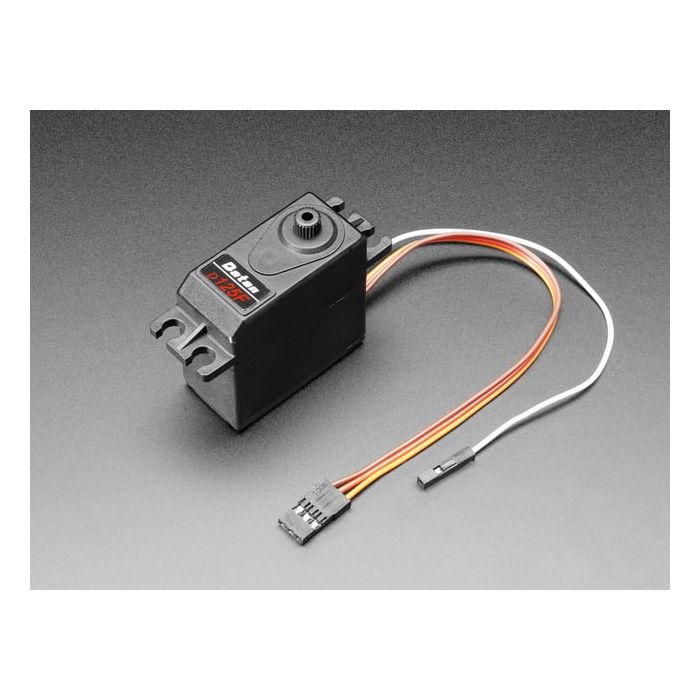

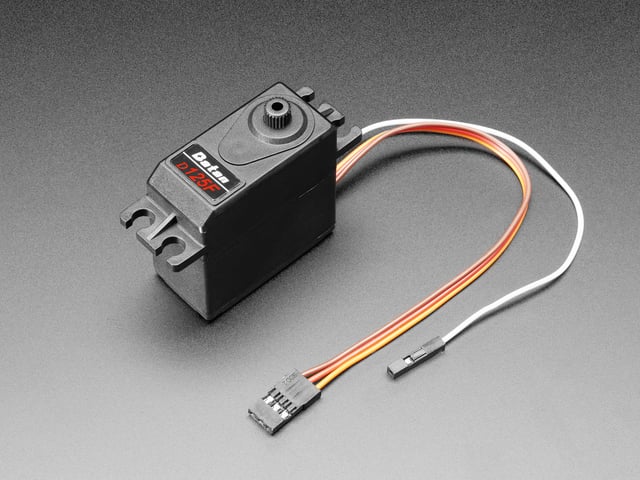

Analog Feedback Standard-Size Servo
❌Kan nageleverd worden
- Artikelnummer
- ADA1404
Omschrijving / Analog Feedback Standard-Size Servo
It looks like a servo; it acts like a servo, but it's more than just a servo! We got a factory to custom-make these classic 'standard' sized hobby servos with a twist - the feedback (potentiometer wiper) line is brought out to a fourth white wire. You can read this wire with an analog input such as those on an Arduino, to get the servo's position. That information can be used in robotics to improve stability or even allow 'recording' of servo motion.
Note that the default servo pulse widths (usually 1ms to 2ms) may not give you a full 180 degrees of motion. In that case, check if you can set your servo controller to custom pulse lengths and try 0.75ms to 2.25ms. You can try shorter/longer pulses, but be aware that if you go too far you could break your servo!
Check out our example Arduino sketch, which demonstrates how to record motion data to the EEPROM and then play it back when a button is pressed. It comes with a range of horns.
Meer informatie
| Artikelnummer | ADA1404 |
|---|---|
| Garantie | 2 Jaar |
| Korte Beschrijving | Adafruit artikelnummer 1404. Dit artikel bestellen wij wekelijks bij Adafruit. Wanneer het niet direct uit onze voorraad leverbaar is, bedraagt de verwachte levertijd circa 1 tot 2 weken. Indien het artikel op voorraad is, kunnen wij het uiteraard direct leveren. |
