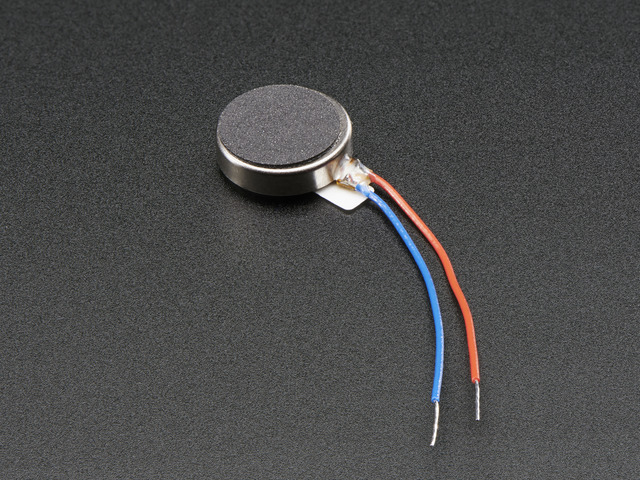

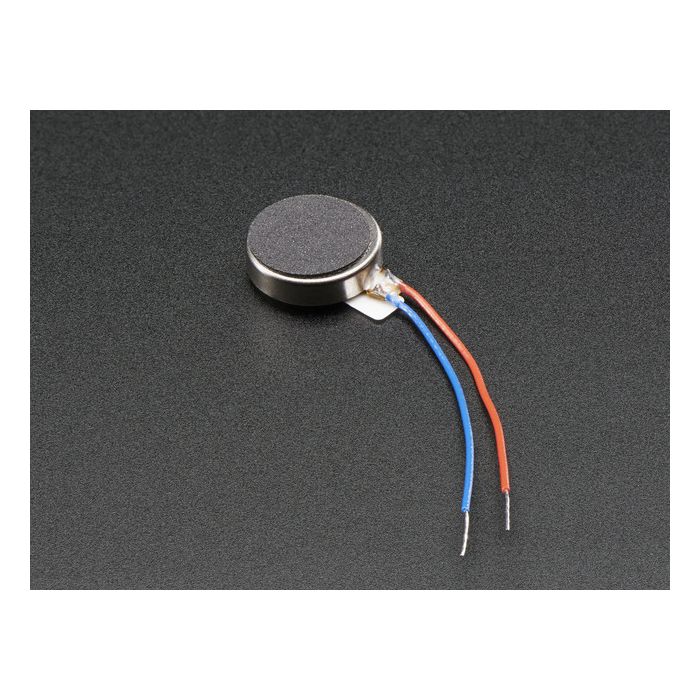

Vibrating Mini Motor Disc
❌Kan nageleverd worden
- Artikelnummer
- ADA1201
Omschrijving / Vibrating Mini Motor Disc
*BZZZZZZZZZZ* Feel that? That's your little buzzing motor, and for any haptic feedback project you'll want to pick up a few of them. These vibe motors are tiny discs, completely sealed up so they're easy to use and embed.
Two wires are used to control/power the vibe. Simply provide power from a battery or microcontroller pin (red is positive, blue is negative) and it will buzz away. The rated voltage is 2.5 to 3.8V and for many projects, we found it vibrates from 2V up to 5V, higher voltages result in more current draw but also a stronger vibration.
If you want to reduce the current draw/strength (for example, to control it directly from an Arduino pin) try putting a resistor (100 to 1000 ohms) in series. For full power control, a small PN2222 transistor can control a motor easily, some experimentation may be required!
Vibrating Mini Motor Disc (6:47)
Meer informatie
| Artikelnummer | ADA1201 |
|---|---|
| Garantie | 2 Jaar |
| Korte Beschrijving | Adafruit artikelnummer 1201. Dit artikel bestellen wij wekelijks bij Adafruit. Wanneer het niet direct uit onze voorraad leverbaar is, bedraagt de verwachte levertijd circa 1 tot 2 weken. Indien het artikel op voorraad is, kunnen wij het uiteraard direct leveren. |
