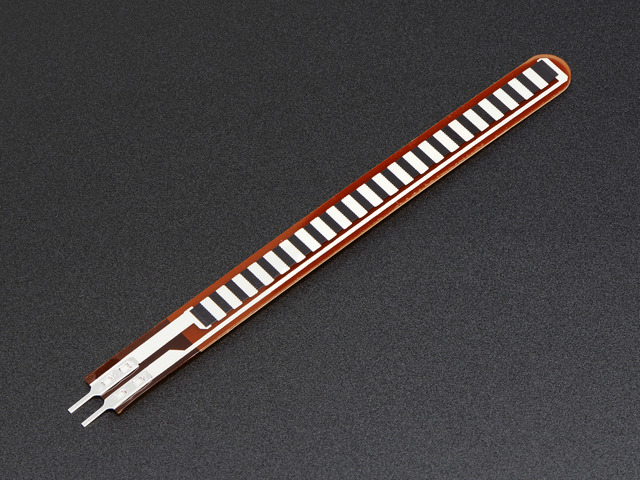

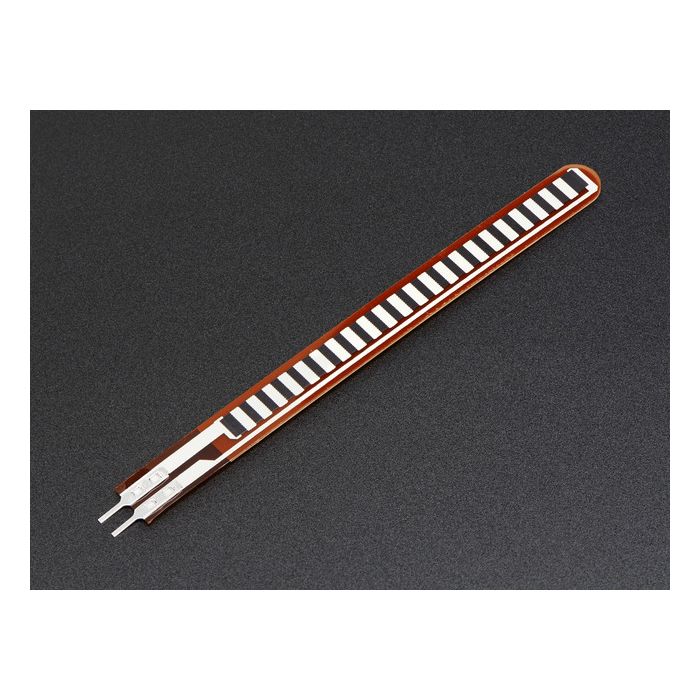

Short Flex Sensor
❌Kan nageleverd worden
- Artikelnummer
- ADA1070
Omschrijving / Short Flex Sensor
This sensor can detect flexing or bending in one direction. They were popularized by being used in the Nintendo PowerGlove as a gaming interface.
These sensors are easy to use, they are basically resistors that change value based on how much their flexed. If they're unflexed, the resistance is about ~25KΩ. When flexed all the way the resistance rises to ~100KΩ. They're pretty similar to FSRs so following this tutorial will get you started. You can use an analog input on a micro-controller (with a pullup resistor) or a digital input with the use of a 0.1uF capacitor for RC timing.
The bottom part of the sensor (where the pins are crimped on) is very delicate so make sure to have strain relief - such as clamping or gluing that part so as not to rip out the contacts!
Meer informatie
| Artikelnummer | ADA1070 |
|---|---|
| Garantie | 2 Jaar |
| Korte Beschrijving | Adafruit artikelnummer 1070. Dit artikel bestellen wij wekelijks bij Adafruit. Wanneer het niet direct uit onze voorraad leverbaar is, bedraagt de verwachte levertijd circa 1 tot 2 weken. Indien het artikel op voorraad is, kunnen wij het uiteraard direct leveren. |
