Electret Microphone - 20Hz-20KHz Omnidirectional
❌Kan nageleverd worden
- Artikelnummer
- ADA1064
Omschrijving / Electret Microphone - 20Hz-20KHz Omnidirectional

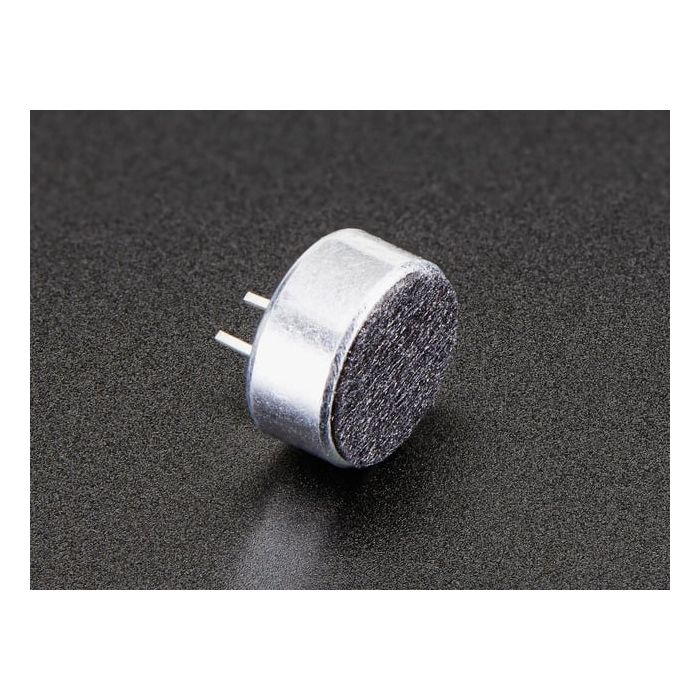

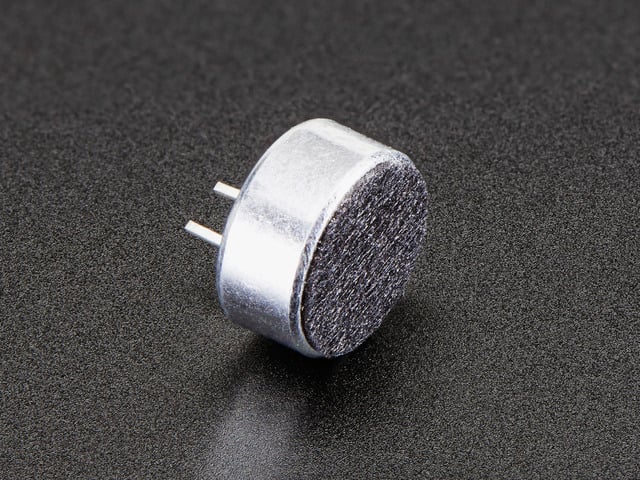

This electret capsule microphone is the same one we use in our great microphone amplifier board. It contains a small vibrating element that will output a few millivolts peak-to-peak. You will need an op-amp to amplify the signal, some chips are designed with the amplifier built-in in which case you can wire it up directly.
This is an "omnidirectional" microphone, with -44dB sensitivity, and has 20-20KHz frequency response. You can plug it into a breadboard or perfboard or solder wires to the little wires sticking out the back.
Check out OpenMusicLab's great tutorial on Electret Microphones for a deeper look at how these sensors work. If you need an amplifier board, see our fully-assembled and tested mic amp board with adjustable gain.
Meer informatie
| Artikelnummer | ADA1064 |
|---|---|
| Garantie | 2 Jaar |
| Korte Beschrijving | Adafruit artikelnummer 1064. Dit artikel bestellen wij wekelijks bij Adafruit. Wanneer het niet direct uit onze voorraad leverbaar is, bedraagt de verwachte levertijd circa 1 tot 2 weken. Indien het artikel op voorraad is, kunnen wij het uiteraard direct leveren. |
